Edge protection on frameworks edges

Prefabricated slab decks with framework

Edge protection on frameworks edges

In constructions with prefabricated slab decks the Precast bracket can be installed onto the frameworks edge with the pre-planned Precast edge holder. This creates a safe attachment for collective fall protection. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to the edge protection solution and positioning of precast edge holders, etc.

PRODUCTS
• Precast bracket
• Precast edge holder
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

Edge protection on slab edge formwork

Lattice girder element

precast_socket_safetyrespect_5330c

Precast sockets that are already casted into a prefabricated lattice girder elements at the concrete factory offers fast and safe mounting of edge protection. The Precast socket has an integrated post lock and is casted into the elements at the factory. Protection sleeve is mounted at the desired height at the working site, and is adapted to the casting height/slabs thickness. Post 1,3 m and Barrier 2,6 are installed either before or after the prefabricated element is lifted in place. The Barriers can easily be lifted to the desired height when casting. No tools are needed. The products are tested in accordance with EN13374 and meet the dimensioning requirements according to the Euro Code.

In constructions with prefabricated slab decks the Precast bracket can be installed onto the frameworks edge with the pre-planned Precast edge holder. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to the edge protection solution and positioning of precast edge holders, etc.

PRODUCTS
• Precast socket
• Protection sleeve for Precast socket
• Precast bracket
• Precast edge holder
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Frame barrier alu 1,3, 1,95, 2,6
• Frame barrier holder
• Adjustable link bar

precast_socket_safetyrespect_5344c

precast_socket_safetyrespect_5344

precast_socket_safetyrespect_2082x

Frame barrier edge protection

Frame barrier edge protection

Frame barrier holder edge protection

Pre-installed attachment on steel beams

beams_and_columns_safetyrespect_0075

When steel beams are used in the building construction a Welding socket with integrated post lock should be designed as an attachment of edge protection. In these cases the Welding socket is welded according to the instructions when producing the steel beams. When the beam has been lifted in place Post 1,3 m and Barrier 2,6 are mounted. The attachment of the edge protection will become both safer and faster with a pre-fabricated attachment such as this one.

PRODUCTS
• Welding socket
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Edge protection installation on steel beams

Edge protection installation on steel structures

Welding socket for installing edge protection

Edge protection precast walls

Wall elements with sockets cast into the top

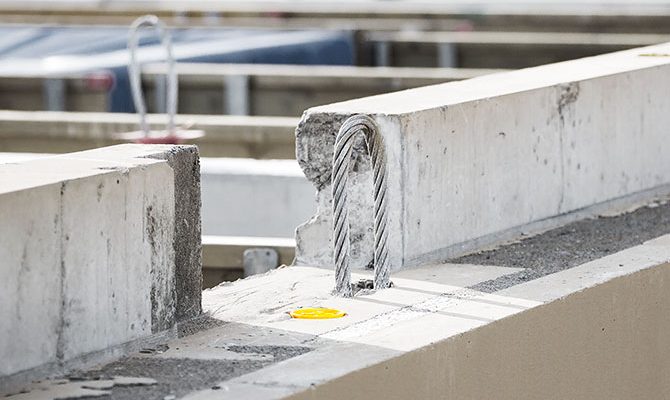

precast_socket_wall_safetyrespect_6922c

The Precast socket wall is an attachment that is designed and cast into the wall element at the factory. This solution creates fast installation of the temporary edge protection and offers a free working space.

PRODUCTS
• Precast socket wall
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

precast_socket_wall_safetyrespect_6930

precast_socket_wall_safetyrespect

Cast in socket M16 for edge protection

Wall elements with sockets cast into the facade

Cast in socket M16 for edge protection

Cast in socket M16 is an attachment that is designed in a wall element that enables fast and safe installation of collective fall protection on the facade. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to recommendations of edge protection solutions, positioning of cast in sockets, pull out loads, laws and regulations.

PRODUCTS
• Cast in socket M16
• Recommended bracket
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Facade bracket for edge protection

cast_in_socket_m16_safetyrespect

Working platform with edge protection

Edge protection for prefabricated material

balconies_safetyrespect_6856

Edge protection solutions that are planned in consultation with both the product management and designers create the best conditions regarding economy, time and safety. Already at the designing stage we investigate things such as attachments for the edge protection in order to find solutions to the work tasks that are to be carried out by the different professional groups of people or subcontractors.
