QUALITY ASSURED EDGE PROTECTION
SafetyRespect AB has developed a new fall-protection concept for the construction industry in order to meet the increasing demands and needs for creating a safe workplace. Quality Assured Edge Protection is an approach in which we focus on the limited construction time, increased pre-fabrication and applicable regulations. We have created a structure through documentation, manuals, and also developed products with integrated safety features that support quality assurance. Continuous monitoring and checking of the mounted edge protection with checklists and an action plan are included.


SafetyRespect standard products
Meets the requirements of SS-EN 13374

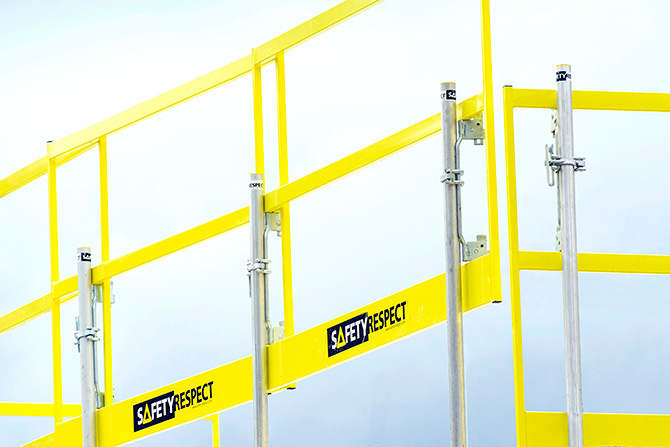

  1. Built in locking leads to fast mounting, higher safety and efficiency
  2. Safe and easy mounting creates a safe working environment! Mount the post in the bracket and turn it at least half a turn to activate the post lock, place the barrier on the post and lock it!
    It can easily be determined if post and barrier is looked and safe, or opened.
  1. The system is based on 48,3 mm pipe and therefore compatible with most Scaffolds.
  2. The products are robust and durable which is economical.
  3. An important advantage is that a wide scope of usage is possible with the same attachments parts this lowers the cost for stocking the material.
  4. The system can be quality assured using SR documentation like Safetycheck etc.



SR Flex system
Meets the requirements of SS-EN 13374

SafetyRespect system, SR FLEX is used for installations, work on facades and roofs where scaffolding for some reason is not desired or cannot be used. The bracket is both faster to install and more flexible than traditional scaffolds, which often makes SR FLEX a better alternative.

  1. The flexibility of the bracket offers multiple solutions
  2. The bracket can be combined depending on the possibilities for fastening. The advantage is that a wide scope of usage is possible with the same fastening parts.
  3. One and the same method of fastening but with different adjustments depending on the angle of roof and the thickness of the vault edge is also a great advantage of this product.
  4. SR Flex can be integrated with SR ordinary edge protection system using the same attachments.
  5. The SR Flex creates a free working area as the product is mounted outside the workspace.
  6. SR Flex Working platform!
    1. SR FLEX can also be used in combination with boardwalks in order to create working space outside of the facade. In such a case SR FLEX can first be used as a edge protection next to the facade, and later be converted into a working platform.
    2. Classification(Sweden): AFS 1990:12 Load class 2/Load class 3 (Type of installation is decisive).



Aluminium Barrier System
Meets the requirements of SS-EN 13374

SafetyRespect’s edge protection system for halls (industrial halls, sports halls, business premises) is used as edge protection on arched roofs, flat roofs or roofs with slight inclination. It is also used in constructions that involve long bearing distances between attachment points for the edge protection and the barriers.

  1. Unique edge protection system for constructions that involve long bearing distances between attachment points for the edge protection and the barriers.
  2. The system can be mounted onto different materials such as steel, concrete or wood/timber.
  3. The edge protection can be adjusted/swivelled variably in a simple operation up to 1,000 mm. This means that maximum edge protection can be established both when working on the roof and also be swivelled outwards to make possible mounting of gutters or similar work at the façade.
  4. The flexibility in both height and sideways makes it possible to find solutions that traditional edge protections do not offer.
  5. Aluminium barriers has low weight and therefore easy to handle.
  6. The system gives possibility to assemble several barriers on ground before lifting into place which leads to fast and efficient mounting.
  7. Robust components give fast and efficient mounting.



Safety Fan
SafetyRespect’s Safety Fan is used to catch falling objects (not people). The system is a compliment to SafetyRespect’s ordinary edge protection system and is used to catch falling material and objects.

  1. The Safety Fan is designed to be mounted onto beams without using a crane or similar device. Safe and convenient.
  2. Thanks to its design the system is flexible and adapted for three main mounting alternatives.
    1. Slab/Beams – On edge of Slab/beams with the possibility of directly integrating SafetyRespect’s ordinary edge protection system.
    2. Walls – On a vertical surface with an ordinary edge protection mounted freestanding.
    3. Scaffolds – Can be mounted on most brands of scaffolding The system is based on 48,3 mm pipe, so when mounting, use standard couplings which means fast and easy mounting options.
