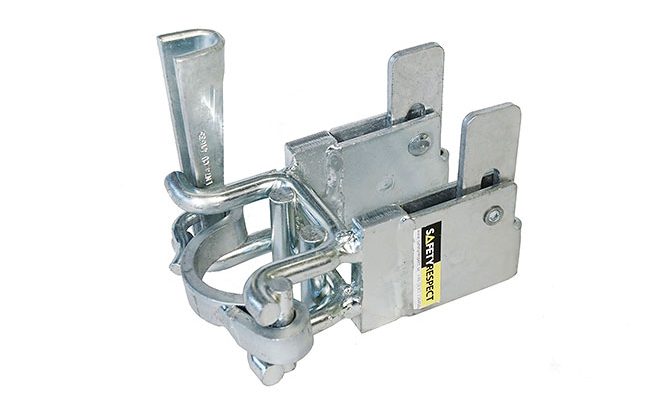

Barrier bracket wedge coupler double is used on posts or scaffold pipes (48,3 mm) for attachment of Barriers or Adjustable link bars as collective edge protection.
• Integrated barrier lock.
• Hot dip galvanized.
• Weight 1,7 kg.
Art. No. 919016
Double coupler stationary (wedge) is used for attaching safety barriers on posts and pipes. The coupler fits SafetyRespect’s different posts and aluminium pipes, as well as common scaffold brands. Easy to install without tools.
Art. No. 914149
Double coupler swivelling (wedge) fits SafetyRespect’s different posts and aluminium pipes, as well as common scaffold brands. Easy to install without tools.
Art. No. 915105

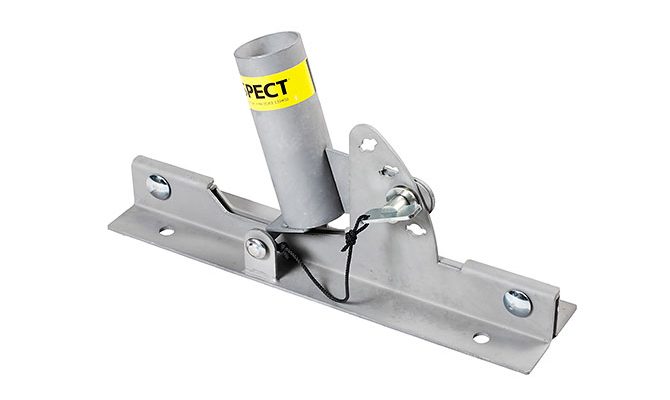

On roof base and cover with double seam the Standing seam bracket can be used as attachment for the edge protection. The bracket can be adjusted to four positions for roof inclinations from 5 to 40 degrees. The standing seam bracket is installed so that the seam lock gets a grip under the seam. The sheets must be of good quality and be fastened against the roof construction.
On roof bases the Standing seam bracket is installed above the roof frame with
wood screws.
• Installed on steel sheet, cover.
• Quick installation.
• Handles various roof angles.
• Does not damage the steel sheet.
• Hot dip galvanized.
• Weight 2,6 kg.
Art. No. 930103
Product sheet
