Trailersafe working platform with personal fall protection

Trailersafe working platform

Trailersafe working platform with fall protection

COMPLETE SOLUTION FOR SAFE UNLOADING OF GOODS

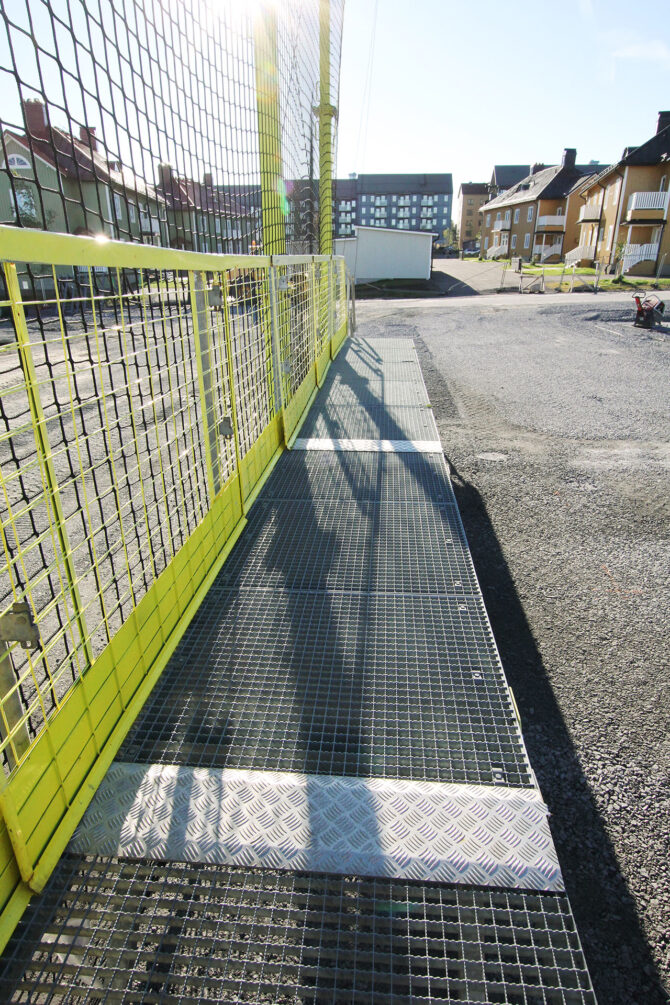

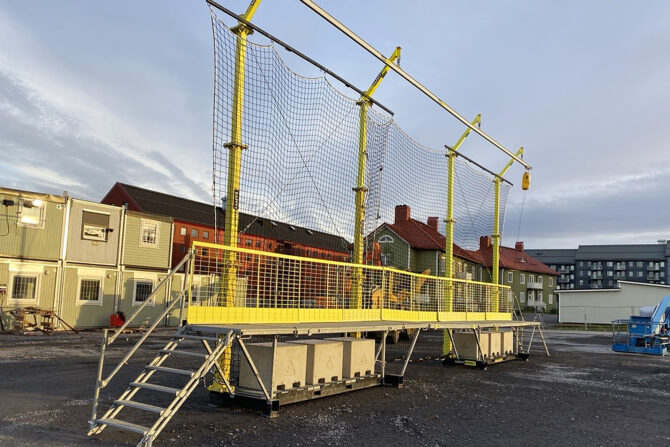

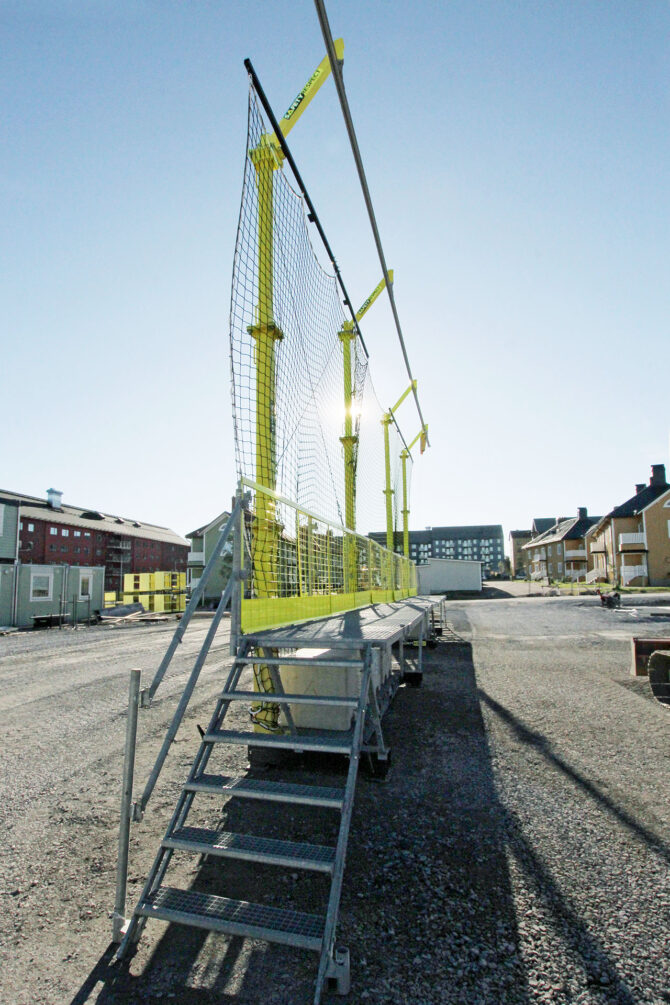

TrailerSafe working platform from SafetyRespect is an easy to use, complete solution for fall protection while loading and unloading goods. TrailerSafe is tested and approved both as a scaffold and as an anchor point for personal fall protection for a maximum of two people.

SafetyRespect’s working platform TrailerSafe has a flexible and modular design, which works
just as well in crowded city environments as on open areas at a construction site. TrailerSafe has overhead anchor points for the personal fall protection. With the rollable trolleys it is easy to move along the entire length of the platform.

The working platform can be adjusted in height to suit different situations, and is pushed out which makes it easy to park the truck close. TrailerSafe can also provide fall protection over longer distances by connecting multiple units. With TrailerSafe, you get a complete and flexible solution where we can help you adapt the platform to your wishes. Assembly is quick and included in the delivery.

• Type approved as scaffolding (EN 12811), max 150 kg/m2.
• Tested and approved as an anchor point for personal fall protection for 2 people (EN 795, TS 16415).
• Overhead anchor point, 7 meters above the ground.
• Adjustable working platform.
• Extendable system for longer distances.
• Moveable when using forks.
• Compact transport and storage mode.
• Stairs with railing, for one or two sides.
• Delivered with assembly included.
• Automatic rescue function as an option.

SPECIFICATIONS
Length: 6 m (excl. stairs)
Height: 7,3 m
Depth: 1,3 m
Height work platform: 1,1–1,5 m
Max working height: 4,5 m
Weight TrailerSafe: 1500 kg
Weight ballast: 3000–5000 kg

Product sheet

Trailersafe working platform with personal fall protection for construction sites

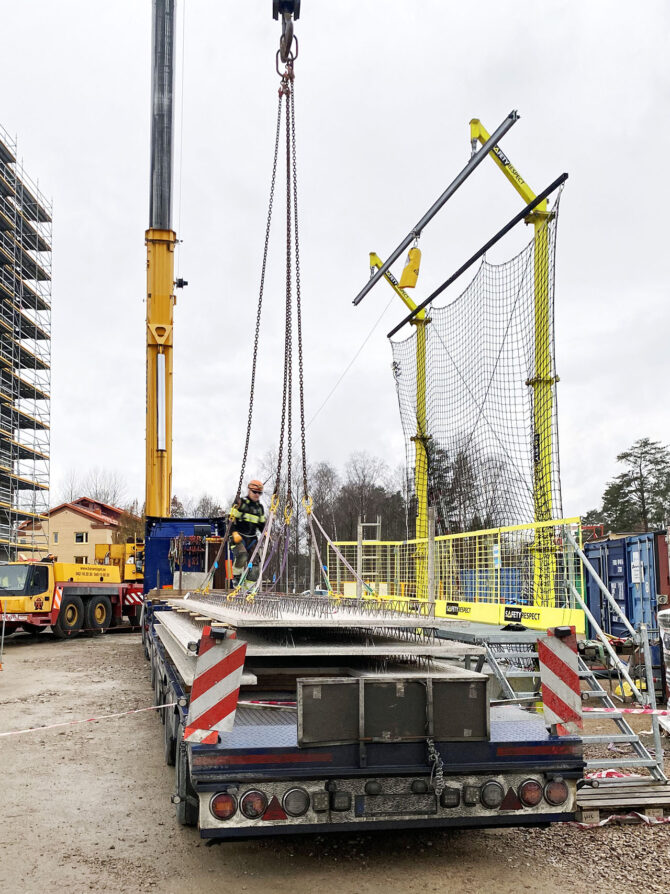

Trailersafe working platform with fall protection for loading and unloading goods

Trailersafe working platform with personal fall protection for construction sites

Trailersafe working platform with fall protection for loading and unloading goods

Trailersafe working platform with fall protection for loading and unloading goods

Trailersafe working platform with personal fall protection for construction sites

Trailersafe working platform with personal fall protection

SafetyRespect Flex working platform

Working platform at facades and roofs

SafetyRespect Flex working platform

When working on facades and roofs Flex working platform can be installed to create a safe working area. The system is both faster to install and more flexible than traditional scaffolds. The system can be adapted to most situations. Installation is mainly done by SafetyRespect in consultation with the customer.

The working platform has a type approval certificate as a scaffold issued by SP (Technical Research Institute of Sweden) in load class 2 and 3 according to AFS 1990:12.

PRODUCTS
• Flex working platform
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

Working platform with fall protection

SafetyRespect Flex working platform

SafetyRespect Flex working platform

Training courses working platforms

Working platform with fall protection

flex_working_platform_safetyrespect_5738x

flex_working_platform_safetyrespect_0647

flex_working_platform_safetyrespect_0673x



Safety fan on scaffolding

safety_fan_scaffolding_safetyrespect_2

SafetyRespect Safety fan system for scaffolding is a compliment to our edge protection system and is used to catch falling material and objects (not people) that may constitute a risk for injuries to people and damage to objects. This system is adapted to be installed on most existing scaffold brands without any need of cranes and with the possibility of integrating SafetyRespect’s edge protection system. Pay attention to the increasing loads on the scaffolding.

PRODUCTS
• Alu pipe 6 m
• Net safety fan 3 x 6 m
• Double coupler swivelling
• Double coupler

safety_fan_scaffolding_safetyrespect_0935x

safety_fan_scaffolding_safetyrespect_4

safety_fan_scaffolding_safetyrespect_3safety_fan_scaffolding_safetyrespect_1

Stair tower edge protection

Stair towers and building hoists

Stair tower edge protection

It is important to create access to slabs at the working site in connections between building hoists and stair towers. SafetyRespect’s products are compatible with most common scaffold brands and stair towers.

PRODUCTS
• Barrier bracket wedge coupler
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Adjustable link bar
• Double coupler swivelling

Building hoist, stair tower and edge protection

Building hoist and edge protection

elevator_safetyrespect_5175c

elevator_safetyrespect_5175cc

stair_towers_safetyrespect_5209x

Coupler 48-50

Coupler 48-50 is used as a bracket for installing edge protection on construction sites. One end on the bracket fits SafetyRespect’s different posts and aluminium pipes and most of the common scaffold brands. The other end fits Flex Beam 50 mm and Alu Beam 50 mm.

Art. No. 915104

Double coupler stationary (screw)

Double coupler stationary (screw) is installed on posts and pipes among other things, as attachment for Barrier Alu 3 m or Alu pipes. Fits SafetyRespect’s different posts and aluminium pipes, as well as common scaffold brands.

Art. No. 915107
