Tag: slab

Construction kit

Posted by safetyrespect on 2024-02-12

With our Construction kit, you get light, convenient fall protection designed for work on slabs or roofs with flat surfaces.

The kit contains a fall protection harness that is easy to put on and take off and is light and easy to work in. The fall arrest block included has a 6 meter long steel line to enable you to move over larger surfaces without needing to change the anchor point. The block is certified for both horizontal and vertical work as well as work on sharp edges. The kit also includes a carabiner and a 1 meter steel sling. The products are supplied in a sturdy, water-resistant bag that can be carried on the back.

CONSTRUCTION KIT
Art. no. 967310
• Harness SR Body
• Block SR IKAR steel 6 m
• Carabiner alu, oval 26 kN ozone black triplock
• Lanyard steel I 100 cm 15 kN
• Gear bag 35 l SR

Product sheet

construction kit SafetyRespect

Mobile platform kit

Posted by safetyrespect on 2024-02-12

For those who work on a mobile platform, we have tailored a fall protection kit that provides great flexibility and freedom of movement.

Since a platform has a limited work surface, there are no long lines needed for anchoring. This kit includes a fall arrest block with a 1,8 meter long band with a fall indicator. The fall arrest block is certified for both horizontal and vertical work as well as work close to sharp edges.

The harness included is easy to put on and take off and is light and easy to work in. The kit also includes a carabiner hook and a 0,6 meter anchor sling. The products are supplied in a heavy duty, water-resistant bag that can be carried on the back.

MOBILE PLATFORM KIT
Art.nr. 967300
• Harness SR Body
• Block SR IKAR textile 1,8 m
• Carabiner alu, oval 26 kN ozone black triplock
• Sling 60 cm, 22 kN
• Gear bag 35 l SR

Product sheet

mobile platform kit safetyrespect

Platform console 55 mm

Posted by safetyrespect on 2023-04-24

When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.

• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.

Art. No. 930089

Product sheet

shaft_platform_safetyrespect_5774

Slab edges

Posted by safetyrespect on 2023-04-13

slaps_safetyrespect_0115

Slab edges are present everywhere and are a common cause of fall accidents. Temporary edge protection can be installed on the slab or on the outside of the slab edge. If there are columns, they can be an alternative attachment of the edge protection.

Our solutions can easily be installed on all materials and provide flexibility when needed, as, for example, when walls are to be installed. Usually Socket base is installed at the slab edge for attaching the edge protection. The Post 1,3 m are installed in the socket base then barriers are attached.

When the barrier is in its lowest position it seals against the slab, and it can easily
be raised on the post for various kinds of work at the slab edge.

PRODUCTS
• Socket base
• Post foot
• Vertical bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

standard_system_0018

standard_system_safetyrespect_0136c

standard_system_safetyrespect_0114c

standard_system_safetyrespect_0112

standard_system_0119

concrete_slab_edges_safetyrespect_0136

standard_system_safetyrespect_0129

ATTACHMENTS

Concrete screw

attachment_anchor_type_m16_safetyrespect_2

Impact anchor and M16

Wood screw WFD

Visa fler

BALCONIES

Brackets on balcony edges

Clamps on balcony edges

Pre-installation on prefabricated elements

Visa fler

BLOCKING AND ENCLOSURES

Blocking and temporary enclosures

Safe access routes

Visa fler

CONCRETE CASTING

Attachment to columns for free working space

Casting in site

Concrete casting on slab structures

Visa fler

FALLING OBJECTS

Fall protection net for catching falling personnel

Safety fan on scaffolding

Safety fan on slab edges

Safety fan on walls

Visa fler

FLOOR OPENINGS AND SHAFTS

Building hoists and stair towers

Floor openings

Lift shaft gate

Shaft openings

Working decks and platforms in lift shafts

Visa fler

HALL CONSTRUCTIONS

Hall system edge protection with adjustable post holder

Adjustable edge protection on hall constructions

Attachments for concrete, steel and wood

Installation with straight posts on hall constructions

Visa fler

PREFABRICATED ELEMENTS

Edge protection for prefabricated material

Lattice girder element

Pre-installed attachment on steel beams

Prefabricated slab decks with framework

Wall elements with sockets cast into the facade

Wall elements with sockets cast into the top

Visa fler

ROOFS AND FACADES

Eaves

Facades

flex_roof_gable_bracket_safetyrespect_9822

Gables

Roof base

standing_seam_bracket_safetyrespect_033c

Tin plated roofs with double seam

Working platform at facades and roofs

Visa fler

SCAFFOLDINGS

Edge protection for scaffolds

Stair towers and building hoists

Visa fler

SLAB EDGES

Compression posts between slabs

Installation of floor structures

Prefabricated concrete slabs

Visa fler

STAIRS

Attachment to the string

Clamp on stairs

Socket base on the stairs

Visa fler

STEEL STRUCTURES

Clamp for edge protection on steel structure

Clamps on steel beams

Long spans

Pre-installed attachments on steel beams

Threaded attachments on steel

Visa fler

TRANSPORTATION AND STORAGE

Box stillage for transporting smaller products

transportation_safetyrespect_safetyrespect_0916cc

Stillage for transporting Barrier 2,6

transportation_safetyrespect_safetyrespect_0916c

Stillage for transporting posts

Stillage for vertical storage of barriers

Transportation and storage

Visa fler

WALL OPENINGS

Barriers at wall openings

Link bars at wall openings

Visa fler

WOOD STRUCTURES

Wood beams

Wood structures

Visa fler

Compression post 2,2-3,5 m

Posted by safetyrespect on 2023-04-13

Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.

• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.

Art.no. 913151

Product sheet

Compression post with barriers as temporary edge protection on concrete slab

compression posts and barriers as fall protection at construction site

compression posts and fall protection SafetyRespect

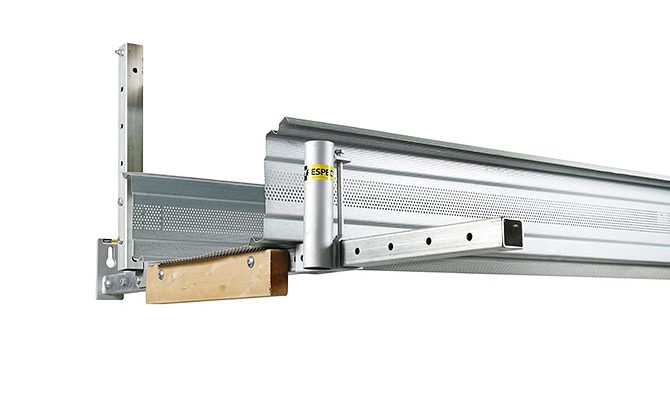

Flex working platform

Posted by safetyrespect on 2022-03-11

When working on facades and roofs Flex working platform can be installed to create a safe working area. The system is both faster to install and more flexible than traditional scaffolds. The system can be adapted to most situations. Installation is mainly done by SafetyRespect in consultation with the customer.

The working platform has a type approval certificate as a scaffold issued by SP (Technical Research Institute of Sweden) in load class 2 and 3 according to AFS 1990:12.

• Flexible installation on wall, floor structure or truss.
• Used with boardwalk steel sheet.
• Configured according to requirement.
• Hot galvanized components.
• Load classification 2 and 3.
• Console weight from 12 kg.

Art. No. 981122

Product sheet

SafetyRespect Flex working platform

Working platform with fall protection

SafetyRespect Flex working platform

Working platform with fall protection

flex_working_platform_safetyrespect_0647

flex_working_platform_safetyrespect_0673x

Flex facade bracket

Posted by safetyrespect on 2022-02-12

In order to create a free working space on facades Flex facade brackets can be used as attachments for temporary edge protection. The attachment itself is designed in order to facilitate installation of edge protections. The distance between the facade and edge protection can easily be adjusted during ongoing work. Flex Facade bracket is available in three different lengths to suit most situations and if the attachments are projected early in the process, the assembly goes quickly and smoothly with high safety. For more specific needs, special configurations of Flex working platform can be the solution that provides good fall protection without being in the way of work near the edge of the work surface.

• Adjustable 50 – 550 mm from the facade.
• Keyhole bracket.
• Installed with c/c up to 2,4 m.
• Hot dip galvanized.
• Weight 6,8 kg.

FLEX FACADE BRACKET 280
Art. no. 914043

FLEX FACADE BRACKET 400
Art. no. 914118

FLEX FACADE BRACKET 600
Art. no. 914119

Product sheet

Flex facade bracket - Fall protection roof on constructon site

Kollektiivinen putoamissuojaus - SafetyRespect

Temporary edge protection on facade

flex_facade_bracket_safetyrespect_9736

Flex eave bracket

Posted by safetyrespect on 2022-02-12

At roof eaves, Flex eave bracket can be installed as an attachment for edge protection. This solution enables a free working space and the distance between the facade and edge protection can be adjusted during ongoing work. The bracket is installed with a through bolt in the roof frame and supports even against the facade or the roof frame.

• Adjustable bracket.
• Configured according to requirement.
• Robust and durable.
• Galvanised components.
• Weight from 5,1 kg.

Art. No. 914123

Product sheet

flex_eave_bracket_safetyrespect_2

flex_eave_bracket_safetyrespect_9820

STANDARD SYSTEM

Adjustable link bars

Alu pipe

Balcony bracket

Balcony bracket 10 gr

Barrier bracket wedge coupler

Barrier bracket wedge coupler double

Barrier stillage 2,6 l

Barrier stillage vertical

Beam bracket alu

Beam bracket wood

Box stillage

Bracket for roof gutter

Cast protection

Clamp 300

Clamp 550

Compression post 2,2-3,5 m

Console bracket

Coupler 48-50

Coupler bracket safety fan

Double coupler stationary (screw)

Double coupler stationary (wedge)

Double coupler swivelling (screw)

Double coupler swivelling (wedge)

Flex vertical beam

Frame barrier 1,3 alu

Frame barrier 1,95 alu

Frame barrier 2,6 alu

Frame barrier holder

Frame barrier holder 360

Ground support plate

Joint pin

Platform console 55 mm

Precast edge holder 120 mm

Side bracket 180 10 gr

Socket base

Socket w rebar 400 mm

Stair bracket

Standing seam bracket

FLEX SYSTEM

Flex eave bracket with counterhold

Flex roof gable bracket

HALL SYSTEM

Adjustable post holder

SAFETY FAN SYSTEM

Catch fan 4 m

Catch fan 6 m

Safety fan scaffolding

GUARD RAIL SYSTEM

Angle foot

Barrier hot dip galvanized

Barrier powder coated

Block foot

Flat foot

Guard rail hot dip galvanized

Guard rail powder coated

Toe board holder

Flex roof gable bracket

Posted by safetyrespect on 2022-02-12

At roof gables the Flex gable bracket can be installed as an attachment for temporary safety barriers, which creates a free working area. The distance between the facade and the edge protection can be adjusted during ongoing work. The attachment can be done in the roof base.

• Adjustable bracket.
• Configured according to requirement.
• Robust and durable.
• Galvanised components.
• Weight from 5,1 kg.

Art. No. 914124

Product sheet

flex_roof_gable_bracket_safetyrespect_9822

flex_eave_bracket_safetyrespect_9820

STANDARD SYSTEM

Adjustable link bars

Alu pipe

Balcony bracket

Balcony bracket 10 gr

Barrier bracket wedge coupler

Barrier bracket wedge coupler double

Barrier stillage 2,6 l

Barrier stillage vertical

Beam bracket alu

Beam bracket wood

Box stillage

Bracket for roof gutter

Cast protection

Clamp 300

Clamp 550

Compression post 2,2-3,5 m

Console bracket

Coupler 48-50

Coupler bracket safety fan

Double coupler stationary (screw)

Double coupler stationary (wedge)

Double coupler swivelling (screw)

Double coupler swivelling (wedge)

Flex vertical beam

Frame barrier 1,3 alu

Frame barrier 1,95 alu

Frame barrier 2,6 alu

Frame barrier holder

Frame barrier holder 360

Ground support plate

Joint pin

Platform console 55 mm

Precast edge holder 120 mm

Side bracket 180 10 gr

Socket base

Socket w rebar 400 mm

Stair bracket

Standing seam bracket

FLEX SYSTEM

Flex eave bracket with counterhold

HALL SYSTEM

Adjustable post holder

SAFETY FAN SYSTEM

Catch fan 4 m

Catch fan 6 m

Safety fan scaffolding

GUARD RAIL SYSTEM

Angle foot

Barrier hot dip galvanized

Barrier powder coated

Block foot

Flat foot

Guard rail hot dip galvanized

Guard rail powder coated

Toe board holder

Flex eave bracket with counterhold

Posted by safetyrespect on 2022-02-11

At roof eaves Flex eave brackets with counterhold can be installed as an attachment for temporary edge protection. The attachment makes possible a free working space and the distance between the facade and edge protection can be adjusted during ongoing work. The bracket is installed with through bolt in the roof frame and supports even against the facade or the roof frame.

• Adjustable bracket.
• Configured according to requirement.
• Robust and durable.
• Galvanised components.
• Weight from 5,1 kg.

Art. No. 914125

Product sheet

flex_eave_bracket_w_counterhold
