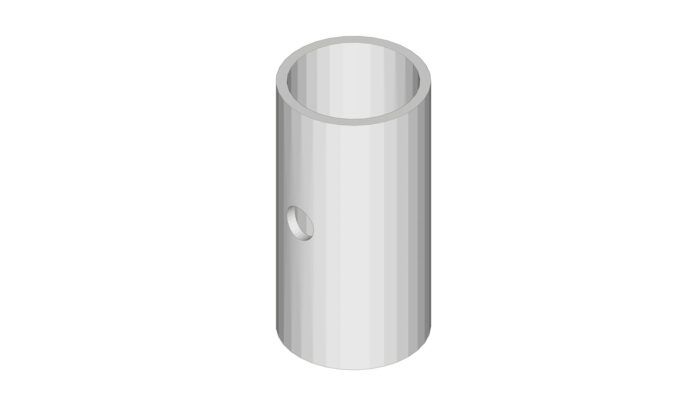

The Weld-on Attachment, round, is welded directly onto the steel beam or steel structure and is used to hold an edge protection post.

• 5100022
• 0,6 kg
• EN 13374, class A
• blank
• 110 mm

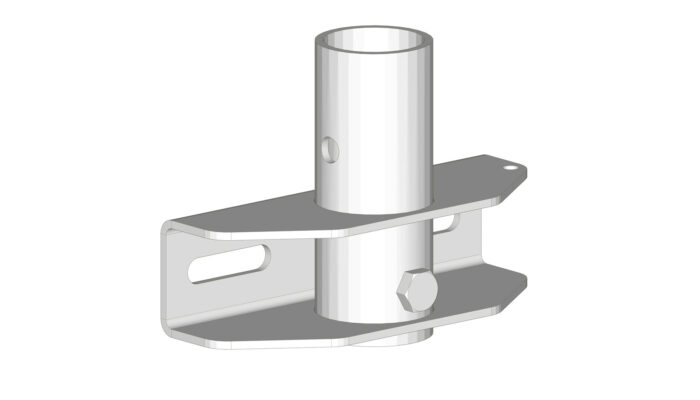

The VT Balcony, round, can be mounted directly on the brickwork or on the balcony and is used to hold an edge protection post. The two attachment points prevent the post holder from swinging out in any situation.

• 5040026
• 1,8 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 200 x 145 mm

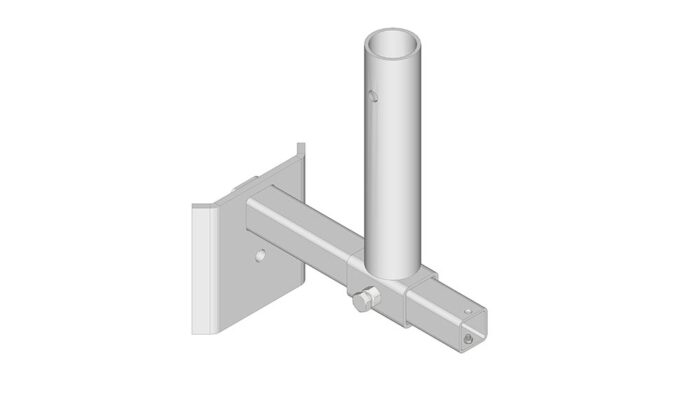

The VT Steelweb, round, allows a clear cantilever of the edge protection of up to 250 mm and is used to hold an edge protection post. It is attached to walls, ceilings and steel beems.

5040010
4.6 kg
EN 13374, class A
hot-dip galvanised (HDG)
325 x 419 mm

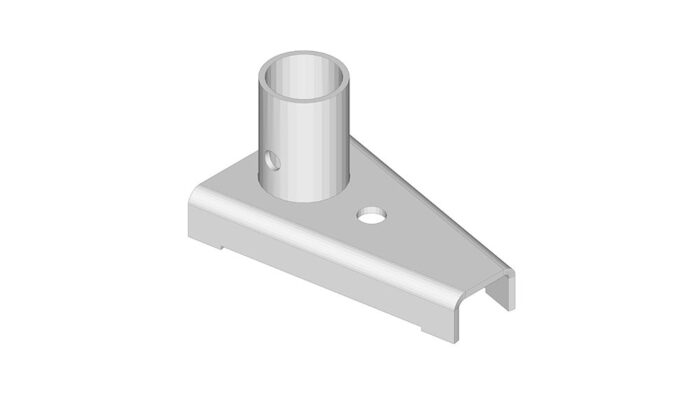

The VT foot, round, is used to hold an edge protection post, suitable for installation on all flat surfaces – ideally on in-situ concrete. This horizontal attachment can be fixed with various screws.

5040002
1.5 kg
EN 13374, class A
hot-dip galvanised (HDG)
200 x 110 mm

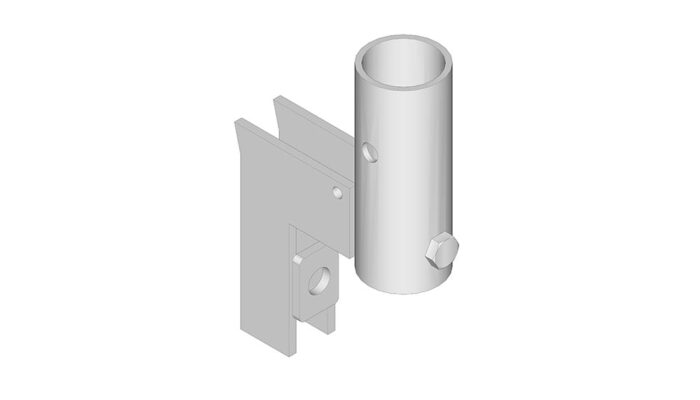

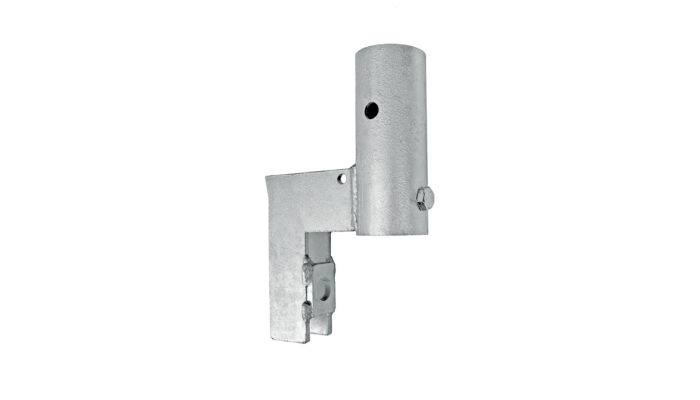

The VT Edge 95, round, is mainly used to reliably secure the edges of stairs. The cantilever of the post to be used is 95 mm and therefore enables work to be carried out safely on the stairs.

5040006
1.7 kg
EN 13374, class A
hot-dip galvanised (HDG)
238 x 155 mm

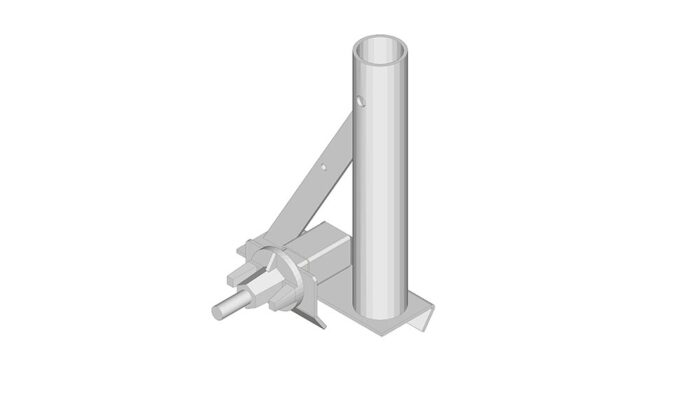

The VT Alu Beam Clamp, round, is used to hold an edge protection post on aluminium formwork beams. For assembly, the clamp is simply placed on the formwork beam and fixed.

5041006
4.0 kg
EN 13374, class A
hot-dip galvanised (HDG)
346 x 212 mm
