The VT Slabstopfix is mounted vertically and serves both to hold an edge protection post and as a stop-end for the edge formwork. An anchor point for rolling threaded rods or anchors offers numerous application possibilities. When mounted, the distance between the punched angle steel and the slab edge is 50 mm.
• 5040027
• 3,4 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 950 x 95 mm
The VT Timber Beam Clamp is used to hold an edge protection post on H20 formwork beams with a flange thickness of 40 mm. Furthermore, this timber beam clamp is used as a stop for the edge formwork.
• 5041003
• 4,3 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 352 x 220 mm
The VT Cast In is a cast-in sleeve that can be inserted directly into the fresh concrete on site and is used to hold an edge protection post. Furthermore, it can also be routed to the reinforcement bars in advance.
• 5040011
• 0,06 kg
• EN 13374, claass A
• Plastic
• 140 x 37 x 37 mm
The VT Edge 55 is mainly used to reliably secure the edges of stairs. The cantilever of the post to be used is 55 mm and therefore enables work to be carried out safely on the stairs.
• 1100004
• 1,3 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 300 x 95 mm
The VT Flat Foot and the VT Flat Foot V2 form the basis of standard-compliant edge protection on wooden structures and are used to hold an edge protection post.
• 1100025
• 1,4 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 200 x 200 mm
The VT Flat Foot and the VT Flat Foot V2 form the basis of standard-compliant edge protection on wooden structures and are used to hold an edge protection post.
• 1100007F
• 1,4 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 200 x 200 mm
The VT Eco Foot has been developed to save costs and transport volume. It
is used to hold an edge protection post and can be fixed on all flat surfaces.
• 5041001
• 1,0 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 200 x 120 x 35 mm

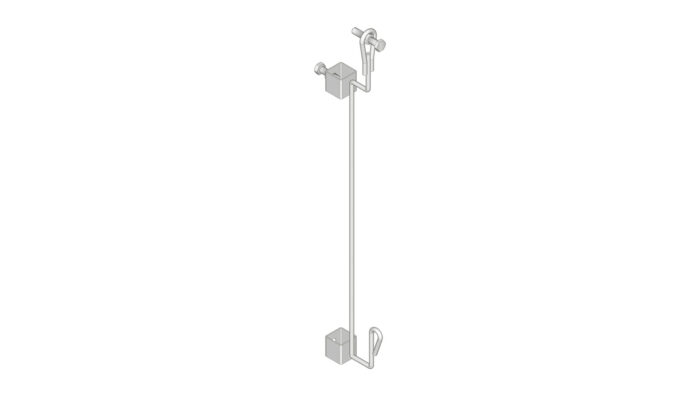

Like the VT Slider, the VT Holder XL is used
for stepless height adjustment of the
different steel barriers.
• 5030049
• 1 kg
• EN 13374, class A
• electrogalvanised
• 720 mm
Like the VT Slider, the VT Holder XL 45 is used
for stepless height adjustment of the
different steel barriers.
• 5030050
• 1,1 kg
• EN 13374, class A
• electrogalvanised
• 720 mm
The VT Post 1200 Timber has been developed for use with the VT Steel Barriers or suitable wooden boards. In combination with the VT Toeboard Holder (50311951), the result is a three-part wooden edge protection consisting of handrail, kneeboard and toeboard. The welded-on hooks have holes for nailing or screwing the wooden boards.
• Art. 5031195
• 3.4 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 1200 x 35 x 35 mm
