The VT Steelweb 425 is designed to connect through a steel beam or onto a vertical surface. The post is adjustable in off set up to 400 mm.
• 5040041
• 3.9 kg
• EN 13374 – ABC
• hot-dip galvanised (HDG)
• 418 x 425 x 155 mm
VT Steelweb 425
Category: VT Square

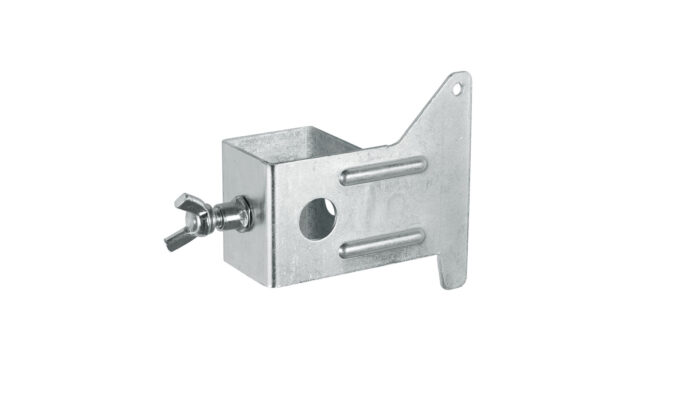

VT Slider
The VT slider is used for stepless height adjustment of the different steel barriers. The locking screw allows the respective steel barriers to be fixed at the respective height.
• 50315008
• 0.2 kg
• EN 13374 – ABC
• Electrogalvanised
• 130 x 92 mm
VT Sheet pile clamp
The VT Sheet Pile Clamp is placed on sheet pile profiles or trench sheets from 5-15 mm and fastened. It is easy to install thanks to the integrated DW15 nut and the locking thread.
• 1100002
• 1.4 kg
• EN 13374, class A
• electrogalvanised
• 175 x 112 mm
VT Post 1500 incl. slider
The VT Post 1500 incl. Slider has been developed for use with the VT Steel Barriers. The VT Slider, which is included in the scope of delivery and is equipped with a locking screw, allows the steel barriers to be adjusted to the desired height. Due to the built-in Easy Snap locking mechanism, the VT Post 1500 snaps self-locking into the post holder.
• 5031500
• 3.5 kg
• EN 13374 – ABC
• hot-dip galvanised (HDG)
• 1500 x 35 x 35 mm
VT Post 1500 basic
The VT Post 1500 has been developed for use with the VT Steel Barriers. The VT Slider, which is included in the scope of delivery and is equipped with a locking screw, allows the steel barriers to be adjusted to the desired height. Due to the built-in Easy Snap locking mechanism, the VT Post 1500 snaps self-locking into the post holder.
• 5031500B
• 3.3 kg
• EN 13374 – ABC
• hot-dip galvanised (HDG)
• 1500 x 35 x 35 mm
VT Roof Attachment
The VT Roof Attachment is designed to form an edge protection on sloping roof surfaces and is fixed to wooden beams. It can withstand dynamic loads.
• 1100009
• 3.0 kg
• EN 13374, class C
• Hot-dip galvanised (HDG)
• 350 x 50 x 220 mm
Weld-on attachment, square
The Weld-on Attachment is welded directly onto the steel beam or steel structure and is used to hold an edge protection post.
• 5100021
• 0.3 kg
• EN 13374, class A
• blank
• 120 mm

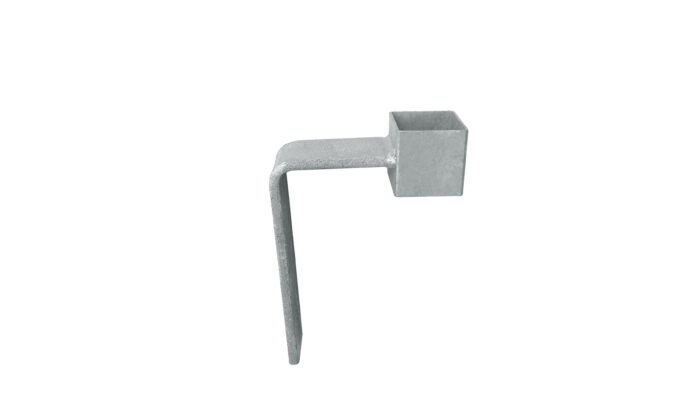

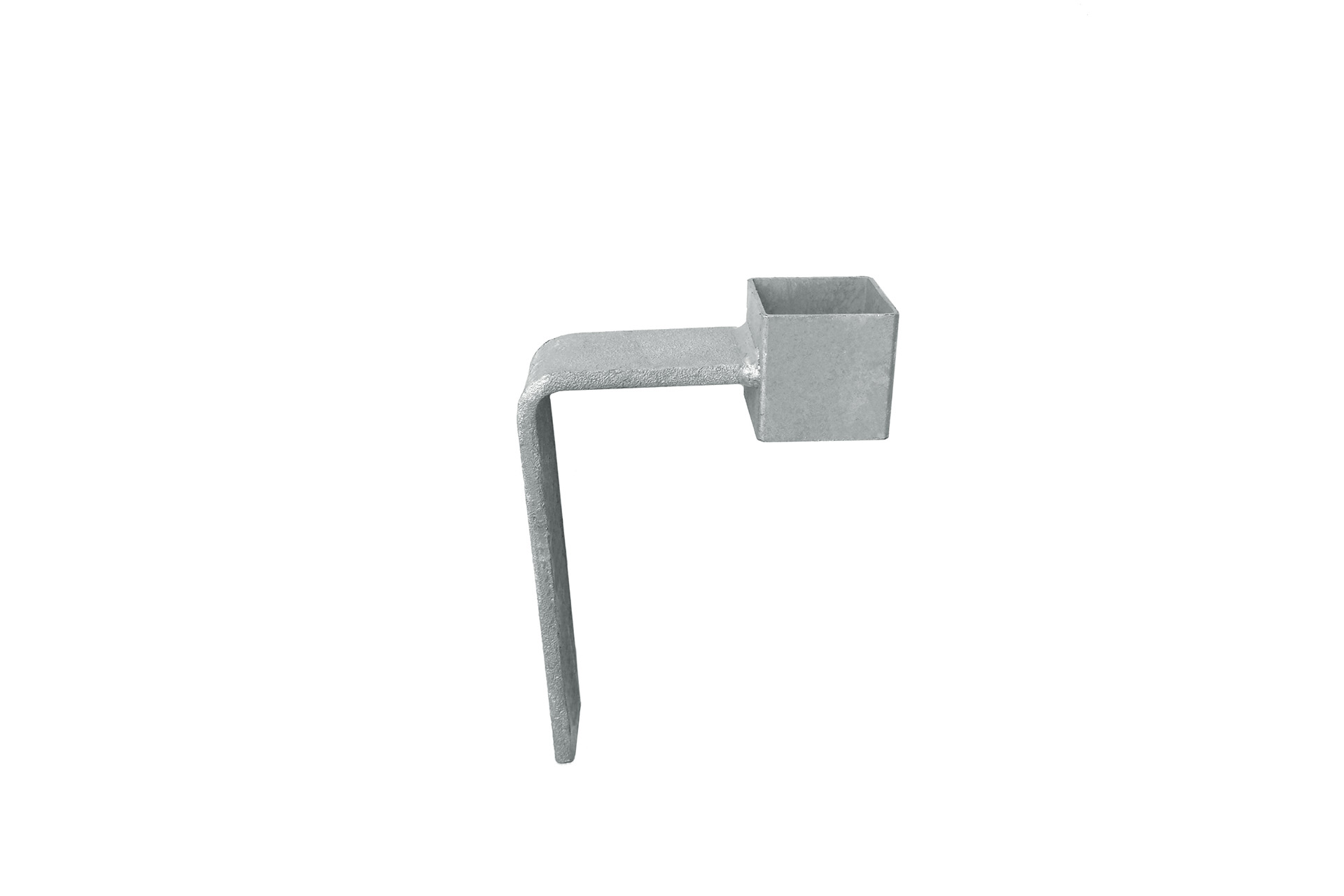

VT Toeboard holder

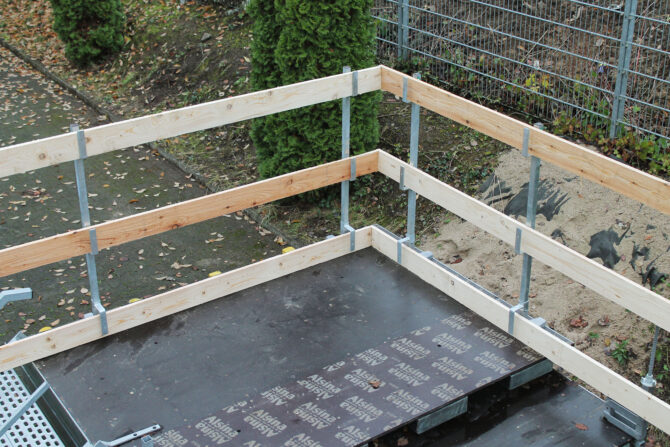

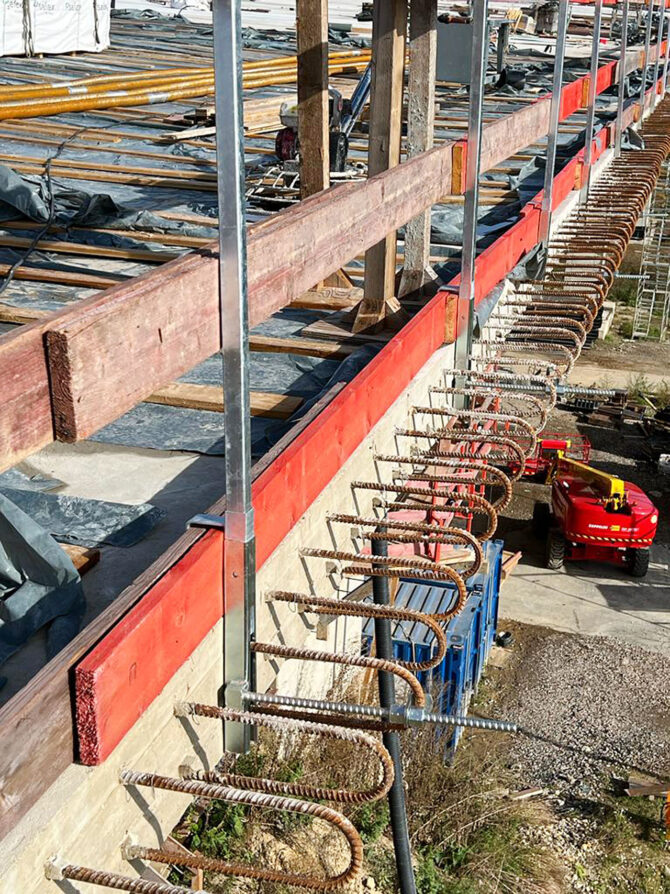

The VT Toeboard Holder is used to attach a toeboard within a 3-part wooden edge protection system. Designed for boards with a height of 150 mm and a thickness of 30 mm, the VT Toeboard Holder is simply pulled onto the post from below.
• 50311951
• 0.5 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 178 x 111 mm
VT Steelflange
The VT Steelflange is used to hold an edge protection post on steel beams without having to drill for it. This clamp allows clamping widths of 80-460 mm.
• 5040007
• 3.8 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 730 x 240 cm
VT Scan post 1200
The VT Scan Post 1200 has been developed for use with the VT Steel Barriers or suitable wooden boards or square timbers. In combination with the VT Toeboard holder (50311951), the result is a multi-part wooden edge protection consisting of handrail, kneeboard and toeboard. The welded-on hooks have holes for nailing or screwing the wooden boards.
• 5039003
• 3.6 kg
• EN 13374, class A
• hot-dip galvanised (HDG)
• 1200 x 35 x 35 mm
