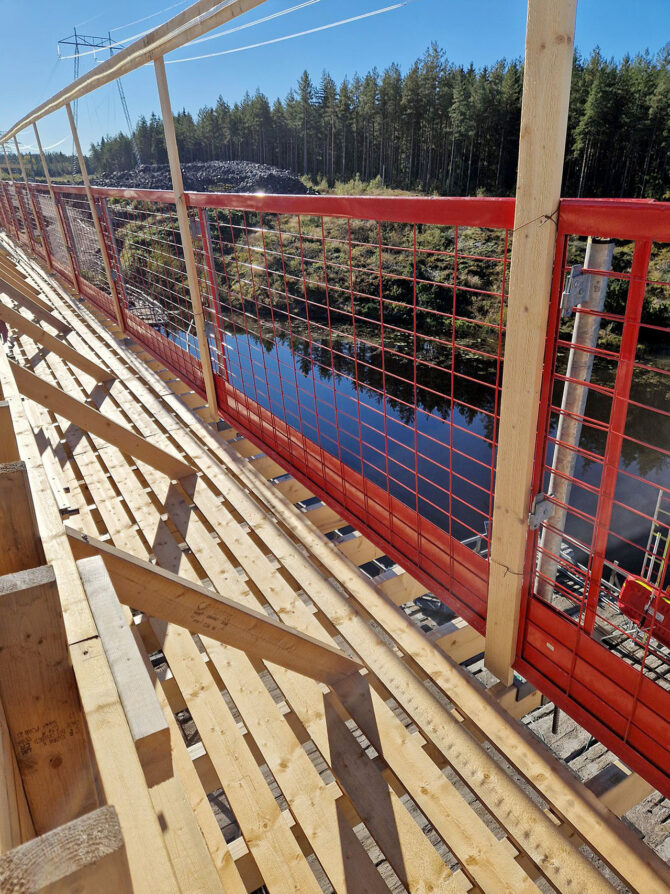

Temporary edge protection mounted on a railway bridge

Edge protection for bridges

Temporary edge protection mounted on a railway bridge

SafetyRespect saves lives with fall protection installed on several bridges being built around Europe and North America. Our flexible attachment solutions make it possible to mount temporary edge protection on most bridge structures.

In building constructions that consists of wooden beams, the Wood beam clamp can be used as attachment for the edge protection. The bracket has integrated post lock and fits beam dimensions of 45 x 120 – 220 mm. It is designed for a flexible mounting and can be easily adjusted as needed. When the bracket has been mounted on the beams, then Post 1,3 m and Barrier 2,6 are mounted. Post foot and Clamp 550 are examples of other brackets that can be used on some bridge constructions. Posts are then mounted in the brackets and after that barriers.

PRODUCTS
• Wood beam clamp
• Post foot
• Post 1,3 m
• Post 1,5 m alu
• Barrier 1,3, 1,95, 2,6

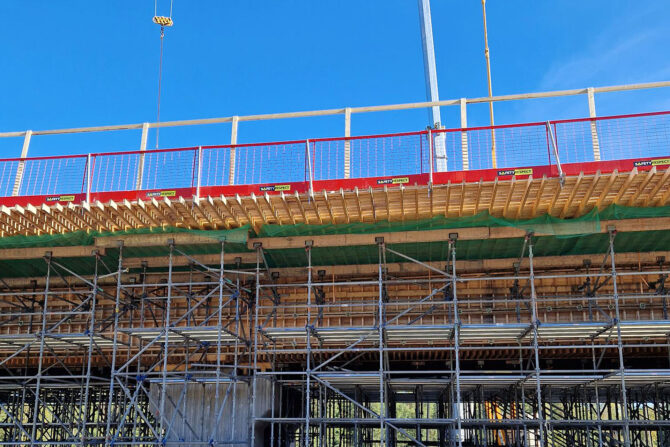

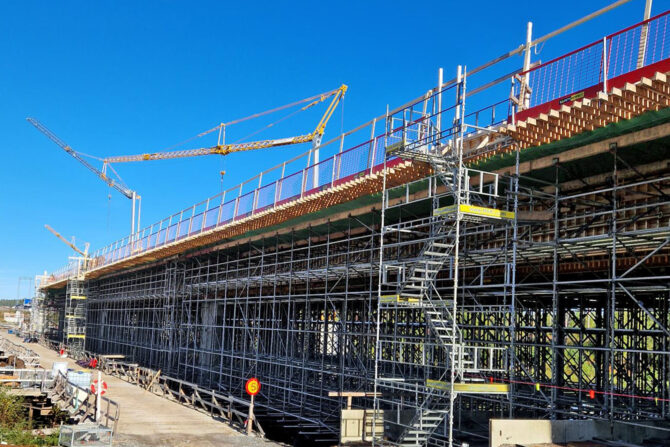

Temporary edge protection mounted on railway bridges

Temporary edge protection mounted on railway bridges

Temporary edge protection mounted on a road bridge

Temporary edge protection mounted on a highway bridge

Temporary edge protection mounted on a road bridge

Temporary edge protection mounted on a road bridge

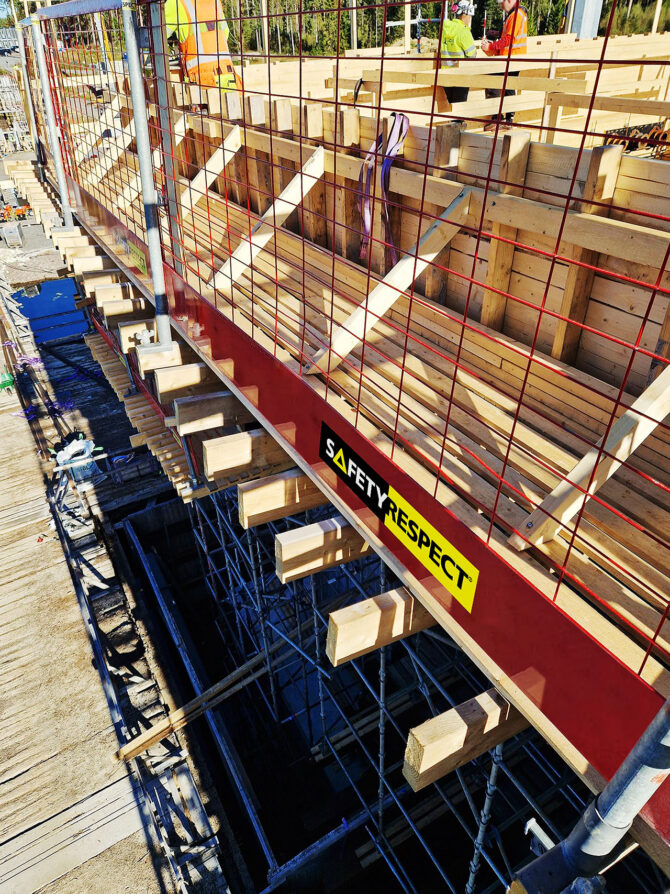

wood beam clamp for edge protection

Wood beams

wood beam clamp for edge protection

In building constructions that consists of wooden beams, the Wood beam clamp can be used as attachment for the edge protection. The bracket has integrated post lock and fits beam dimensions of 45 x 120 – 220 mm. It is designed for a flexible installation and can easily be adjusted as needed. When the bracket has been installed on the beams, Post 1,3 m and Barrier 2,6 are mounted.

PRODUCTS
• Wood beam clamp
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

Edge protection on bridge construction

wood beam clamp for edge protection

Clamp for edge protection on steel structure

Clamps on steel beams

Clamp for edge protection on steel structure

On steel beams with a flange a Steel beam clamp can be installed in order to quickly create an attachment for the edge protection. This creates a free surface on the slab that can be used for other work tasks. The clamp is designed with gripping jaws for the steel beam profile. The steel beam clamp has an integrated attachment for the post. Barrier 2,6 is installed directly onto the post lock and its height can easily be adjusted in order to facilitate different work tasks.

PRODUCTS
• Steel beam clamp

• Post 1,5 m alu
• Barrier bracket wedge coupler
• Barrier 1,3, 1,95, 2,6

steel_beam_clamp_safetyrespect_5399

steel_beam_clamp_safetyrespect_5412steel_beam_clamp_safetyrespect_1

Clamps on balcony edges

clamp_300_bracket_safetyrespect_5639c

Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is suitable for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the dimensions of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.

PRODUCTS
• Clamp 300
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

clamp_300_safetyrespect_2

Steel beam clamp

On steel beams with a flange a Steel beam clamp can be mounted in order to quickly create an attachment for temporary edge protection. Using steel beam as attachment creates a free surface on the slab and can be used for other work tasks. The safety barriers will then be positioned outside the working space. The clamp is designed so that is has jaws that grip the steel beam profile. The steel beam clamp has an integrated attachment for posts. Barriers are installed directly onto the post lock and its height can easily be adjusted in order to facilitate different work tasks.

• Grips steel beams and posts with flanges up to 300 mm.
• Integrated post bracket.
• Robust and durable thread.
• Hot dip galvanized.
• Weight 6,3 kg.

Art. No. 912209



Product sheet

Temporary edge protection on steel beams

steel_beam_clamp_safetyrespect_5399

steel_beam_clamp_safetyrespect_5412

steel_beam_clamp_safetyrespect_013



Wood beam clamp

Wood beam clamp

Wood beam clamp

In building constructions that consists of wooden beams, the Wood beam clamp can be used as attachment for the edge protection. The bracket has integrated post lock and fits beam dimensions of 45 x 120 – 220 mm. It is designed for a flexible mounting and can be easily adjusted as needed. When the bracket has been mounted on the beams, then Post 1,3 m and Barrier 2,6 are mounted.

• Flexible mounting on wooden beams.
• Beam dimensions 45 x 120-200 mm.
• Easy to adjust.
• Integrated post lock.
• Hot dip galvanized.
• Weight 2,9 kg.

Art. no. 912174

Product sheet

Edge protection bridge



Wood beam clamp

Wood beam clamp bridge

Edge protection bridge
