When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.
• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.
Art. No. 930089
Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.
PRODUCTS
• Compression post 2,2-3,5 m
• Frame barrier holder
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

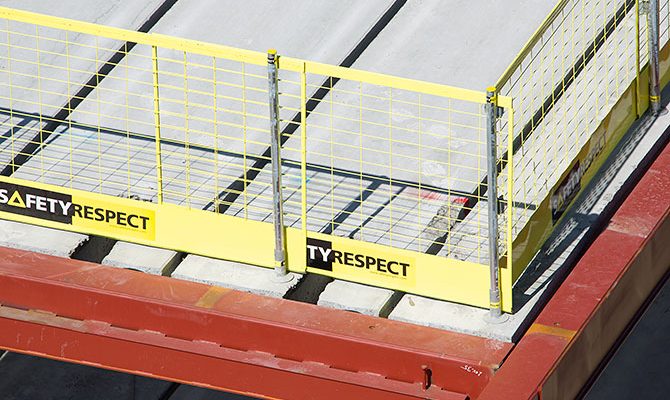

Slab edges are present everywhere and are a common cause of fall accidents. Temporary edge protection can be installed on the slab or on the outside of the slab edge. If there are columns, they can be an alternative attachment of the edge protection.
Our solutions can easily be installed on all materials and provide flexibility when needed, as, for example, when walls are to be installed. Usually Socket base is installed at the slab edge for attaching the edge protection. The Post 1,3 m are installed in the socket base then barriers are attached.
When the barrier is in its lowest position it seals against the slab, and it can easily
be raised on the post for various kinds of work at the slab edge.
PRODUCTS
• Socket base
• Post foot
• Vertical bracket
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6
• Barrier bracket 360

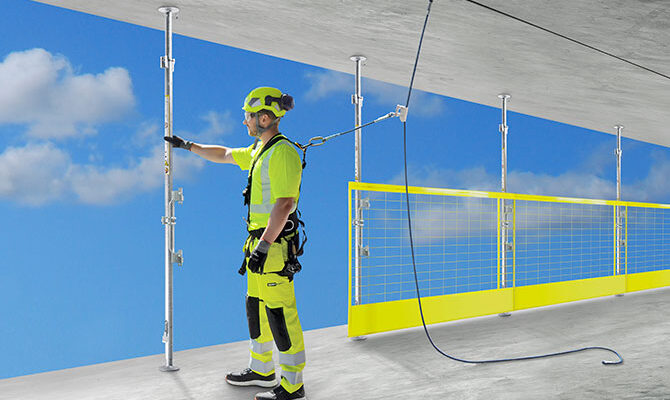

Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.
• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.
Art.no. 913151
Post 1,5 m alu is used for installing barriers as collective edge protection on construction sites. Made of aluminum pipe 48,3 x 4,0 mm with integrated post lock.
• Weight 3,2 kg.
• 100 pieces delivered in stacking stillage.
Art.no. 911116

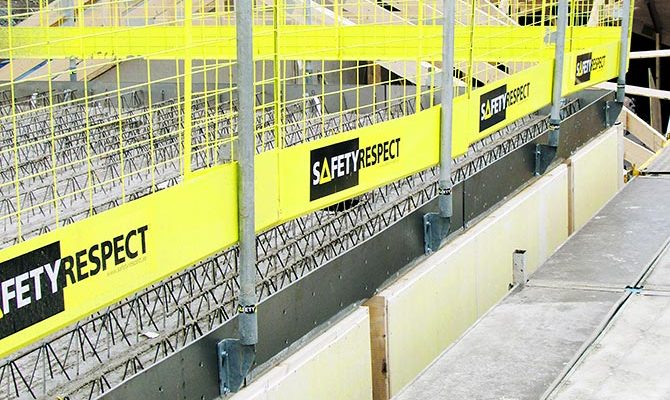

In constructions with prefabricated slab decks the Precast bracket can be installed onto the frameworks edge with the pre-planned Precast edge holder. This creates a safe attachment for collective fall protection. A dialogue takes place between the manufacturer of the prefabricated material and SafetyRespect’s technical division as to the edge protection solution and positioning of precast edge holders, etc.
PRODUCTS
• Precast bracket
• Precast edge holder
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

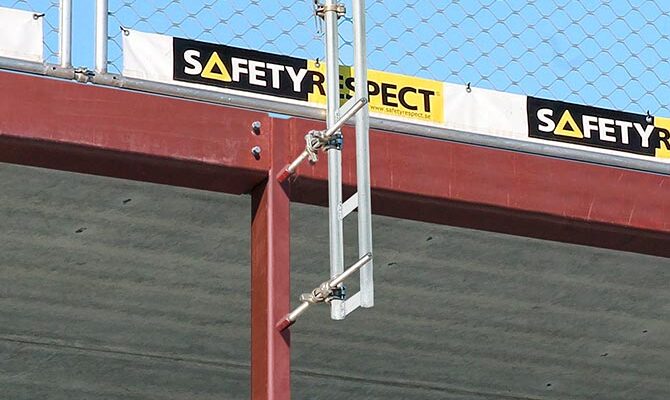

Making use of available columns or other structure elements for attachment enables work tasks on the slab to be completed freely and efficiently. The edge protection will be suspended on the columns above the working surface at a correct height, considering future work to be carried out. SafetyRespect’s Barrier alu 3 m can handle large spans and makes possible installation between columns. The Barriers are continuously jointed with Pipe joints or Pipe couplings without using any attachment on the slab. The Barriers can be raised so that they create a completely free working space required when applying a new surface layer, casting, etc.
PRODUCTS
• Barrier alu 3 m
• Joint pin
• Attachment
Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is suitable for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the dimensions of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.
PRODUCTS
• Clamp 300
• Post 1,3 m
• Barrier 1,3, 1,95, 2,6

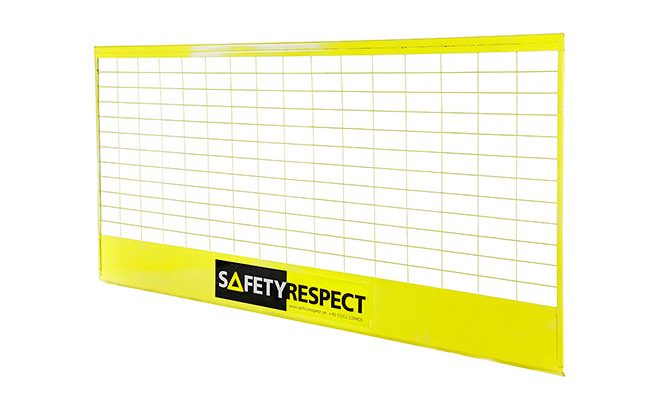

Barrier to use as collective fall protection on building sites.
• Can be easily raised and lowered on the posts.
• Zinced and powder coated.
• Stable frame construction.
• Integrated toe board 260 mm.
• Weight 19,7 kg.
• 35 pieces delivered in stacking stillage.
Art. No. 913111
Slab edges are present everywhere on construction sites and are an usual cause of fall accidents. Socket base can be installed as attachment for edge protection on the slab edge, stairs and other situations where there is a risk of falling. Our solution can be installed on all types of material and they are very fast and flexible as, for example, when walls are to be installed. When the safety barrier is in its lowest position it seals against the slab, and it can easily be raised on the post for various kinds of work at the slab edge.
• Integrated post lock.
• Several bolt alternatives.
• Hot dip galvanized.
• Weight 1,0 kg.
• 150 pieces delivered in stacking box stillage.
Art. No. 912110
