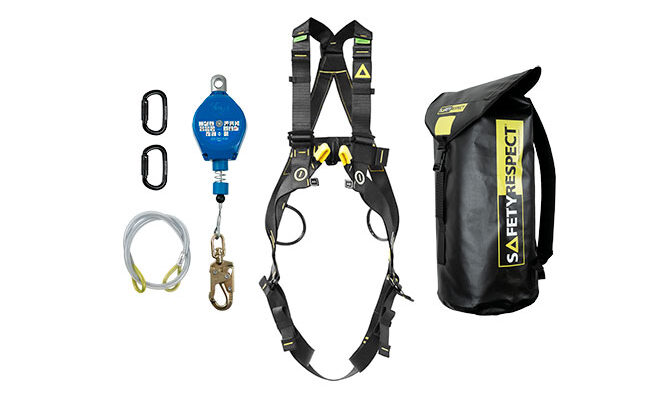

Construction kit

Posted by safetyrespect on 2024-02-12

With our Construction kit, you get light, convenient fall protection designed for work on slabs or roofs with flat surfaces.

The kit contains a fall protection harness that is easy to put on and take off and is light and easy to work in. The fall arrest block included has a 6 meter long steel line to enable you to move over larger surfaces without needing to change the anchor point. The block is certified for both horizontal and vertical work as well as work on sharp edges. The kit also includes a carabiner and a 1 meter steel sling. The products are supplied in a sturdy, water-resistant bag that can be carried on the back.

CONSTRUCTION KIT
Art. no. 967310
• Harness SR Body
• Block SR IKAR steel 6 m
• Carabiner alu, oval 26 kN ozone black triplock
• Lanyard steel I 100 cm 15 kN
• Gear bag 35 l SR

Product sheet

construction kit SafetyRespect

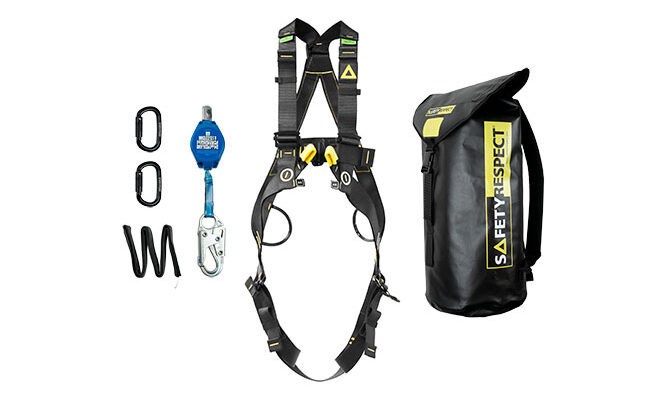

Mobile platform kit

Posted by safetyrespect on 2024-02-12

For those who work on a mobile platform, we have tailored a fall protection kit that provides great flexibility and freedom of movement.

Since a platform has a limited work surface, there are no long lines needed for anchoring. This kit includes a fall arrest block with a 1,8 meter long band with a fall indicator. The fall arrest block is certified for both horizontal and vertical work as well as work close to sharp edges.

The harness included is easy to put on and take off and is light and easy to work in. The kit also includes a carabiner hook and a 0,6 meter anchor sling. The products are supplied in a heavy duty, water-resistant bag that can be carried on the back.

MOBILE PLATFORM KIT
Art.nr. 967300
• Harness SR Body
• Block SR IKAR textile 1,8 m
• Carabiner alu, oval 26 kN ozone black triplock
• Sling 60 cm, 22 kN
• Gear bag 35 l SR

Product sheet

mobile platform kit safetyrespect

Block foot

Posted by safetyrespect on 2023-10-01

Block foot is used as ground support for our Guard rail system. Multiple holes for flexible
placement of guard rails. The Guard rail system is a stable, robust and fast mounted system for blocking and temporary enclosures, designed to meet demanding environments.

• Cut outs for toe board.
• Composit material.
• Weight 15 kg.

Art. no. 983203

Product sheet

Block foot guard fence

Guard rail system

Fence hot dip galvanized

Posted by safetyrespect on 2023-10-01

Fence for blocking and temporary enclosures at construction sites, traffic environments, events etc. The system is designed with integrated hooks and loops for ergonomic and cost-effective handling. The fence is hot dip galvanized, designed to meet demanding environments and can be placed in several angles. We also offer custom profiling with powder coating in desired color and logotype. Weight 16 kg, 19 kg, 23 kg.

PRODUCT OVERVIEW

Hot dip galvanized:
• Fence 1,8 m art. no. 983141
• Fence 2,5 m art. no.983142
• Fence 3,2 m art. no. 983143

Galvanized and powder coated:
• Fence 1,8 m art.no. 983151
• Fence 2,5 m art.no. 983152
• Fence 3,2 m art.no. 983153

Accessories:
• Flat foot art.no. 983201
• Angle foot art.no. 983202
• Block foot art.no. 983203
• Toe board holder art.no. 983401

Product sheet

Guard rail system

Block foot guard fence

Guard rail system

Fall protection net

Posted by safetyrespect on 2023-09-30

Fall protection net is used as edge protection at construction sites to catch both people and materials that may fall. The net is available in a variety of sizes and designs and and the attachment is done with a rope or with a so called Grippa in, for example, a roof girder construction. The fall protection net offers both flexibility and safety, which results in increased efficiency when working at great heights. When positioned correctly the protection net is also used to catch falling objects such as waste material, tools, building parts, equipment, etc. The protection net also reduces the feeling of great height, which means that possible fear of heights of the workers is reduced. This creates a feeling of safety with increased efficiency as a result.

Fall protection net 10 x 12 – Art. No. 941010
Fall protection net 8 x 12 m – Art. No. 941011
Fall protection net 8 x 10 m – Art. No. 941012

Product sheet Fall protection net

Product sheet Grippa

Platform console 55 mm

Posted by safetyrespect on 2023-04-24

When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.

• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.

Art. No. 930089

Product sheet

shaft_platform_safetyrespect_5774

Compression post 2,2-3,5 m

Posted by safetyrespect on 2023-04-13

Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.

• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.

Art.no. 913151

Product sheet

Compression post with barriers as temporary edge protection on concrete slab

compression posts and barriers as fall protection at construction site

compression posts and fall protection SafetyRespect

Barrier alu 3 m

Posted by safetyrespect on 2023-04-03

Barrier alu 3 m is used when installing Hall system as temporary edge protection on hall building constructions. SafetyRespect Hall system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

• Can easily be raised and lowered on the posts.
• Stable frame construction of 48,3 mm aluminium pipe.
• Integrated toe board 225 mm.
• Weight 22 kg.
• 14 pieces delivered in stacking stillage.

Art. No. 910122

Product sheet

Fall protection on hall building

Edge protection on hall constructions

Hall system edge protection with adjustable post holder

hall_system_safetyrespect_0035

Side plate 140×140

Posted by safetyrespect on 2023-04-03

Side plate is used when attaching brackets for temporary safety barriers on hall buildings. SafetyRespect Hall system is an edge protection developed for flat roofs and gently inclined roofs. Such an example is constructions for industry, sports, events and commerce. The system has several attachment alternatives and can handle long spans between the attachment points. The system consists of safety barriers of aluminium and smart components that offer rapid and safe installation.

Art. no. 914155

Product sheet

Edge protection on hall roof
