When you want to create a safe platform/working deck in a lift shaft you should use Platform consoles that are fastened to the inside of the shaft wall. When the platform consoles have been installed, grade timber of correct dimensions should be used to create the platform level.
• Bracket that creates flats at openings and shafts.
• Installed with console tenon.
• Maximum load 1,000 kg/console.
• Weight 1,4 kg.
Art. No. 930089
Compression post is used as for installing edge protection between concrete slabs and other situations at construction sites. Utilizing the Compression post together with Barrier and Containment net a fully covered opening can be achieved. The containment net stops debris and material from entering or exiting the floor and the Barrier acts as collective fall protection. The Compression post is easy to install by extending the inner pipe to the ceiling and then activating the compression function by a foot pedal.
• Tool free installation.
• Adjustable length 2,2-3,5 m (7’2”-11’5”).
• Tension load (FT) 100-150 kg.
• Fits with various barrier brackets.
• Hot dip galvanized.
• Weight 10,5 kg.
• EN 13374 A, OSHA 1926.502 (B).
• Delivered 50 pcs in stackable pallet.
Art.no. 913151

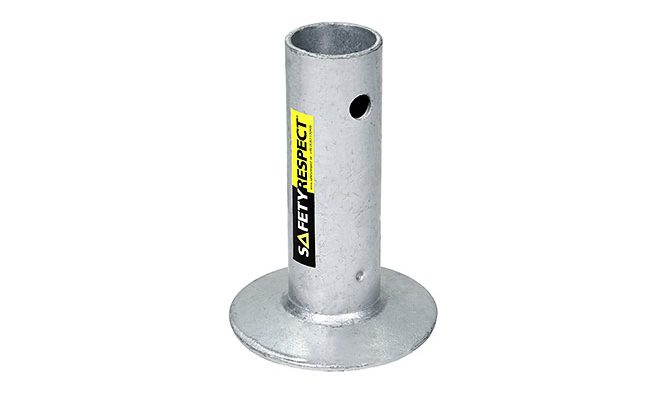

Slab edges are present everywhere on construction sites and are an usual cause of fall accidents. Socket base can be installed as attachment for edge protection on the slab edge, stairs and other situations where there is a risk of falling. Our solution can be installed on all types of material and they are very fast and flexible as, for example, when walls are to be installed. When the safety barrier is in its lowest position it seals against the slab, and it can easily be raised on the post for various kinds of work at the slab edge.
• Integrated post lock.
• Several bolt alternatives.
• Hot dip galvanized.
• Weight 1,0 kg.
• 150 pieces delivered in stacking box stillage.
Art. No. 912110

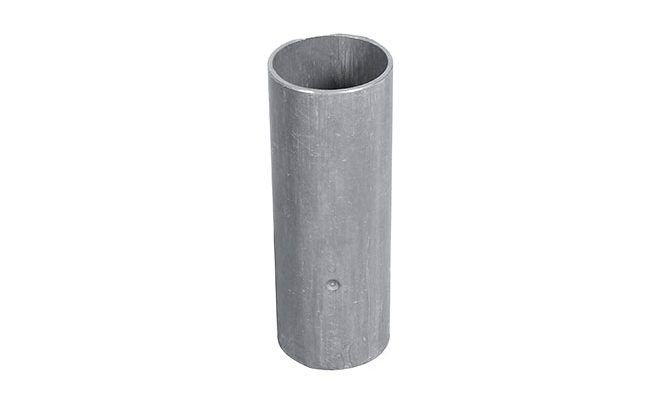

When steel beams are used in the building construction a Welding socket with integrated post lock should be designed as an attachment of edge protection. In these cases the Welding socket is welded according to the instructions when producing the steel beams. When the beam has been lifted in place Post 1,3 m and Barrier 2,6 are mounted. The attachment of the edge protection will become both safer and faster with a pre-fabricated attachment such as this one.
• For welding on steel structures.
• Available with and without bottom.
• Integrated post lock.
• Untreated.
• Standard height 150 mm.
Art. No. 914009

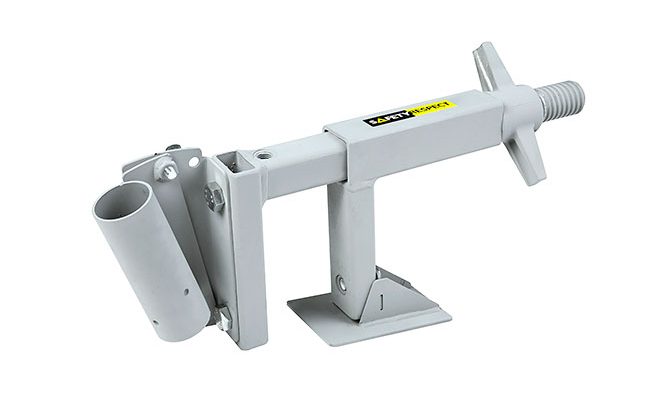

This bracket is installed together with a scantling in the roof gutter, to use as edge protection at the construction site. The bracket is installed together with posts and barriers.
• Integrated post lock.
• Hot dip galvanized.
• Weight 6,8 kg.
Art. No. 930102
Inclined bracket for edge protection that facilitates installation of external panel wall. The ordinary attachment for the balcony railing can be used for installing the Balcony bracket. After that Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 are installed in order to adapt the edge protection according to the dimensions of the balcony.
• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.
Art. No. 912160
The ordinary attachment for the balcony railing can be used for attaching edge protection. Here you can use Balcony bracket with Post 1,3 m together with Barrier 2,6, Barrier 1,3 or Barrier 1,95 in order to adapt the edge protection according to the dimensions of the balcony.
• Fits all common balcony attachments.
• M10 or M12.
• Hot dip galvanized.
• Weight 1,3 kg.
Art. No. 912150
Console brackets are used as attachment for edge protection on slab edges to create free working space. It has several installation alternatives and adjustable or stationary position.
• Installed with Socket base.
• Hot-galvanised.
• Weight 1,4 kg.
Art. No. 912116
Clamp 300 can be installed on balcony edges as brackets for the edge protection. This clamp is good for a balcony thickness of 300 mm and has an integrated bracket for Post 1,3 m. Depending on the measurements of the balcony, Barrier 2,6, Barrier 1,3 or Barrier 1,95 is then installed on the post.
• Width span 0 – 300 mm.
• Vertical or horizontal installation.
• Delivered with movable post holder.
• Several installation alternatives.
• Hot dip galvanized.
• Weight 5,4 kg.
• 50 pieces delivered in stacking stillage.
Art. No. 912245
Beam bracket wood is used for installing collective fall protection on wooden beams in form systems at vaults cast in site. The bracket is installed together with posts and barriers.
• Integrated post lock.
• Hot dip galvanized.
• Quick screw lock.
• Weight 4,0 kg, 2,3 kg.
PRIMARY – Art. No. 912168
SECONDARY – Art. No. 912169
Product sheet
