A working method has been developed in which we are involved as early as the design stage in developing solutions in accordance with an established methodology – an edge protection analysis. We identify situations where there might be a risk of falling, and solutions are then specified at the design stage. We cooperate with the project management, designers and local managers to create safe workplaces.

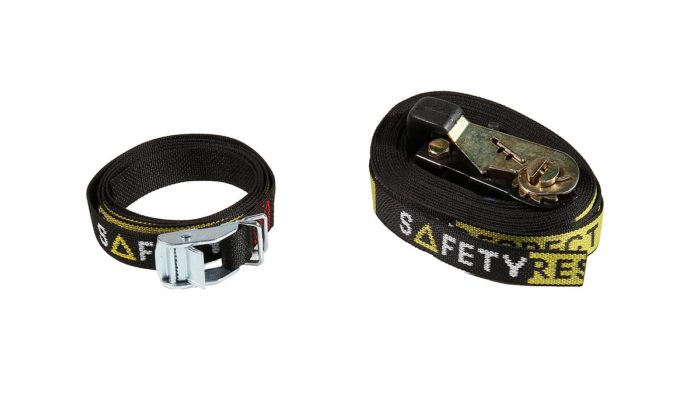

Very strong and durable straps for attaching, fastening and strapping edge protection equipment at construction sites.
• Great range of application.
• Three different lengths.
Strap 0,6 m. – Art. no. 919206
Strap 1,5 m. – Art. no. 919215
Strap 5,0 m. – Art. no. 919250
Double coupler stationary (wedge) is used for attaching safety barriers on posts and pipes. The coupler fits SafetyRespect’s different posts and aluminium pipes, as well as common scaffold brands. Easy to install without tools.
Art. No. 914149
This is a bracket for mounting edge protection on sheet piles up to 20 mm thickness. It is designed with integrated post lock and can be mounted with c/c up to 2,4 m.
• Hot dip galvanized.
• Weight 1,6 kg.
• EN13374 A, OSHA 1926.502 (B).
• Delivered 150 pcs in stackbable pallet.
Art. no. 912181
Side bracket is installed on the form work as an attachment for edge protection. This version is an inclined bracket that facilitates installation of external panel wall. It is designed with an integrated post lock and is hot dip galvanized. Weight 0,6 kg.
Art. no. 912123
Side bracket is installed on the formwork as an attachment for edge protection. It is designed with an integrated post lock and is hot dip galvanized. Weight 0,6 kg.
Art. no. 912117
The Stair bracket with spacers makes it possible to let the protection in the stairs during the whole construction period. As an attachment point for the bracket the regular cast in sockets in stairs can be used. All kinds of work can be carried out with the Adjustable link bars in place, even the final painting work.
• Installed on the string.
• Pipe length 150 mm.
• Spacer length 30 mm.
• Cast in socket M12.
• Integrated post lock.
• Hot dip galvanized.
• Weight 0,8 kg.
Art.no. 911320
In building constructions that consists of wooden beams, the Wood beam clamp can be used as attachment for the edge protection. The bracket has integrated post lock and fits beam dimensions of 45 x 120 – 220 mm. It is designed for a flexible mounting and can be easily adjusted as needed. When the bracket has been mounted on the beams, then Post 1,3 m and Barrier 2,6 are mounted.
• Flexible mounting on wooden beams.
• Beam dimensions 45 x 120-200 mm.
• Easy to adjust.
• Integrated post lock.
• Hot dip galvanized.
• Weight 2,9 kg.
Art. no. 912174
Sandwich walls often have low bearing capacity in the outer sheet, and sometimes the there is no outer sheet and only the insulation is in place. In order to minimize the work of installing edge protection, WI brackets can be cast into the framework with customized spacing for the insulation layer. The bracket is configured specifically for each individual project to fit the wall structure and casting method. Outside the insulation, the Flex vertical beam is used for a close fit for the edge protection. When the edge protection is disassembled, the distances are also removed and a minimal completion of the insulation remains to maintain the insulating properties of the wall.
• Precast insertion into wall elements.
• Used with Flex vertical beam.
• Custom length depending on insulation thickness.
• Insulation thickness up to 200 mm.
• Galvanized.
• Weight 1,8 kg.
Art.no. 919200
Flex vertical beam is a post holder for the WI bracket, and used with edge protection. Sandwich walls often have low bearing capacity in the outer sheet, and sometimes the there is no outer sheet and only the insulation is in place. In order to minimize the work of installing edge protection, WI brackets can be cast into the framework with customized spacing for the insulation layer. The bracket is configured specifically for each individual project to fit the wall structure and casting method. Outside the insulation, the Flex vertical beam is used for a close fit for the edge protection. When the edge protection is disassembled, the distances are also removed and a minimal completion of the insulation remains to maintain the insulating properties of the wall.
• Integrated post lock.
• Hot dip galvanized.
• Weight 2,4 kg.
Art.no. 919205
Product sheet
